FEATURES OF EXIDE GELMAGIC RANGE OF BATTERIES

A VRLA Gel battery utilizes a one way, pressure-relief valve system and Gelled (immobilized) electrolyte to achieve a recombinant technology. Gelled Electrolyte is formed by addition of silicon dioxide (SiO2) to diluted Sulphuric acid (H2SO4). Fused gelled electrolyte not only acts as electrolytic medium for ion movement but also provides infinite small crevices necessary for recombination reaction. Oxygen normally produced on the positive plate is transported to negative plates through crevices formed in fused gel and it is then absorbed by negative plates. This surpasses the production of hydrogen at the negative plates. Water (H2O) is produced instead, retaining the moisture within the battery. It never needs watering, and should never be opened as this would expose the battery to excess oxygen from air.

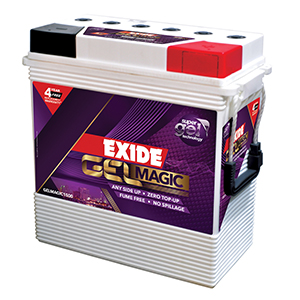

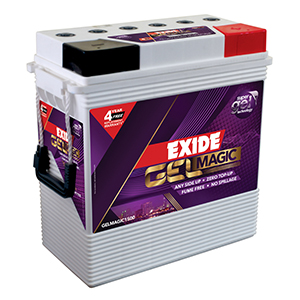

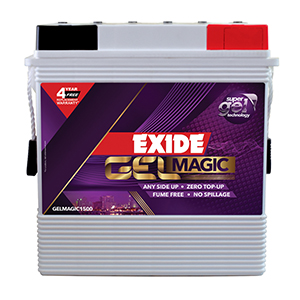

PRODUCT IMAGES

Exide Gelmagic exide maintenance free battery for inverter Gelmagic 1500

Exide Gelmagic Inverter Battery Online Purchase Gelmagic 1500

Exide Gelmagic exide inverter battery 150 ah price

Premium maintenance-free design requires no electrolyte maintenance unlike deep cycle flooded batteries that require frequent checking an adjustment of electrolyte level.

High pressure venting system leads to high oxygen recombination efficiency.

Because there is no liquid type electrolyte, it will not leak out of battery if tipped on its side.

Higher tolerance against damage from deep discharge.

Extended shelf life, low self-discharge rate.

Enhance recharging efficiency.

Do not need immediate recharge after discharging.

Delivers the best combination cycling and deep cycle services.

Prevention of Thermal runaway through efficient heat dissipation.

Stable quality & High reliability.

Technical Specifications of Exide Gelmagic Range of Batteries

Model	Part Number	Nominal Voltage (V)	Capacity* in Ah	Length +/- 3mm	Width +/- 3mm	Height +/- 3mm upto lid top	Weight (kg)+/- 5%	Charging current (A)
GelMagic 1500	FGM0-GelMagic 1500	12	150	401	189	407	50	15
*At 27°C when discharged at C20 up to 1.75 vpc.

Technical Advantages and Customer Benefits

If Summation ofElectrical Load	Max Inverter Rating	System Voltage
Advanced Calcium-Calcium Technology for Grid Alloy	Corrosion resistant Low self discharge Reliability at high temperature Even after keeping idle for 2 years, 50% of capacity is retained	Higher tolerance for overcharging Absolutely maintenance free Suitable for use in extreme conditions Increased shelf-life
High quality silica gel used in acid as electrolyte/td>	Minimum fluctuation in voltage and capacity over high temperature range (-30 ° C to 65° C) Deep discharge resistance is extremely high Lower internal temperature rise leads to longer service life	Immediate charging after deep discharge not required Excellent recovery from deep discharge High reliability, longer life
Oxygen Recombination Technology	Extremely low gas extrication (25% of flooded battery)	Lesser explosion and fire risk Ideal for use where ventilation is poor, labs, industries
Plates surrounded by Gel	Lesser tendency of thermal run away.	Enhanced cycle life and better performance.
Special plate design	Increased protection against grid corrosion.	Ability to withstand arduous service conditions
Special paste recipe	Enhanced charge acceptance	High recharging efficiency
Special profile separator together with low resistant glass mat on flat surface	Fully protect the design against internal shorts and plate shedding. Greater power output. Lower internal temperature rise.	High reliability low degradation rate, greater protection against vibrations. Longer service life.
One way Pressure Relief Valve	Consistent opening & closing pressure	Better Maintenance Free characteristics
