FEATURES OF EXIDE INSTABRITE

Presenting Exide Instabrite. The latest offering from Exide that promises superior power backup at a fantastic price. With Exide Instabrite, you can be sure that there will be no shortage of power in your home. Get instant brightness with the best. Get Exide Instabrite.

PRODUCT IMAGES

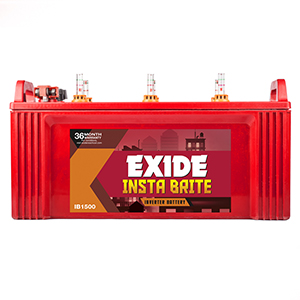

Exide Instabrite 150 ah battery for inverter

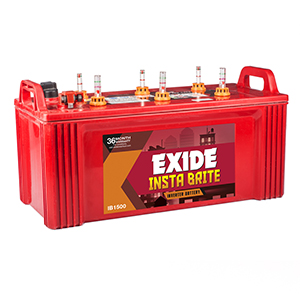

Exide Instabrite 1500 inverter batery 150 ah

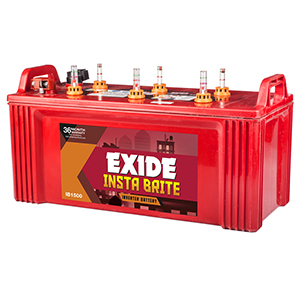

Exide Instabrite 1500 150 ah home ups battery

Unique features and superior technology: Advanced Hybrid Technology that is best suited to withstand high temperatures as well as thick plate construction with special paste formulation. Special hybrid alloy system leading to low water loss and dual plate separation(PE+GM) that reduces the possibility of premature failure

Easy maintenance: Float/float guide to indicate electrolyte level

Easy handling/spill-proof: Moulded handles to ensure easy handling. Top vented lid with anti-splash guards fitted with coin flush vent plugs

Fume and leak resistant: Spark arrestor fitted in float to restrict fumes and acid during operation. Clean top with no surface leakage

Ready for commissioning: Batteries supplied in factory-charged condition

TECHNICAL SPECIFICATIONS FOR EXIDE INSTABRITE BATTERIES

Battery Type	Part Number	Ref. C20 Capacity (Ah)	Maximum Overall Dimension (mm)				Nominal Filled Weight (kg)	Electrolyte Volume (litre)	Charging Current (A)	Acid level Indicator
Battery Type	Part Number	Ref. C20 Capacity (Ah)	L	W	H	H (with float)	Nominal Filled Weight (kg)	Electrolyte Volume (litre)	Charging Current (A)	Acid level Indicator
IB1500	FIB0-IB1500	150	508	222	257	264	41.0	11.0	10.5	PRESENT

APPLICATION CHART FOR EXIDE INSTABRITE BATTERIES

If Summation of Electrical Load	Max Inverter Rating	System Voltage	Recommended Battery Capacity for different Backup time
If Summation of Electrical Load	Max Inverter Rating	System Voltage	5 Hrs.	4 Hrs.	3 Hrs.	2 Hrs.	1 Hrs.
160 Watt	250 VA	12V	-	-	-	-	-
161 - 240 Watt	350 VA	12V	IB1500 INSBRT1500	-	-	-	-
241 - 440 Watt	650 VA / 700 VA	12V	2P - IB1500 2P - INSBRT1500	-	-	IB1500 INSBRT1500	-
441 - 600 Watt	850 VA / 900 VA	12V	-	-	2P - IB1500 2P - INSBRT1500	-	-
601 - 700 Watt	1050 VA / 1100 VA	12V	3P - IB1500 3P - INSBRT1500	-	2P - IB1500 2P - INSBRT1500	-	IB1500 INSBRT1500
701 - 1000 Watt	1450 VA / 1500 VA	12V	-	-	-	2P - IB1500 2P - INSBRT1500	-
1000 Watt	1450 VA / 1500 VA	24V	2SX2P - IB1500 2SX2P - INSBRT1500	2SX2P - IB1500 2SX2P - INSBRT1500	-	-	-

Note:

* Cut-off voltage of inverter should be 10.5V (Minimum).

* There should be a periodic Bench-Charging of the battery after every three months from the date of installation.

* S = Series connection
P = Parallel connection
e.g. 2S x 2P = A string containing 2 nos. batteries in series and 2 nos. such strings in parallel. Consideration of Electrical Load Details
1 no. Fan = 80 Watt
1 no. Tube light = 40 Watt
