Exide InvaMore 1500

Home Two Wheeler Batteries Three Wheeler Batteries CARS|SUV|LCV|HCV Batteries Inverter Batteries Solar Batteries Generator Batteries Check Manufacturing Date Of Battery Exide Battery Price Exide Warranty Registration

FEATURES OF EXIDE INVAMORE BATTERY RANGE

Exide InvaMore Unique and cutting edge T-plate technology for the first time in an inverter battery that provides unbeatable life expectancy and performance due to taller plates

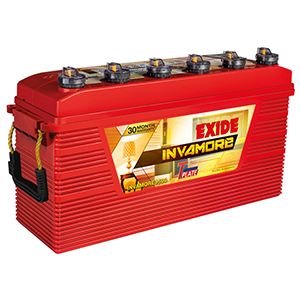

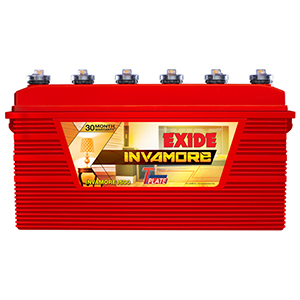

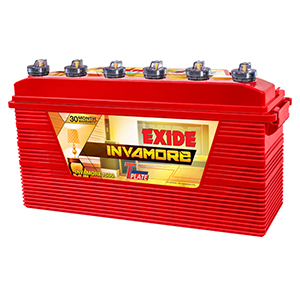

PRODUCT IMAGES

Unique and cutting edge T-plate technology for the first time in an inverter battery that provides unbeatable life expectancy and performance due to taller plates

Optimized Alloy System for deep discharge application

Double Clad Separation ensures proper support to Active Material leading to higher reliability in application

New Float Assembly with click-fit top part: Battery grade distilled water can be poured without opening the Float Assembly making it more user-friendly

Rope handle with partial plastic encasing for easy handling

Lug type take-off ensures easy fitment during installation

Factory-charged batteries that are ready for commissioning

New design with improved cosmetics that enhances the look of the battery

Technical Specifications for Exide Invamore Batteries

BATTERY TYPE	PART NUMBER	VOLTAGE (V)	CAPACITY (AH) 20HR (REF)	MAXIMUM OVERALL DIMENSIONS (MM)				NOMINAL FILLED WEIGHT (KG)	ELECTROLYTE VOLUME (L)	ACID LEVEL INDICATOR	BENCH CHARGING CURRENT (A)
BATTERY TYPE	PART NUMBER	VOLTAGE (V)	CAPACITY (AH) 20HR (REF)	L (MM)	W (MM)	H (MM)	H (With Float) (MM)	NOMINAL FILLED WEIGHT (KG)	ELECTROLYTE VOLUME (L)	ACID LEVEL INDICATOR	BENCH CHARGING CURRENT (A)
INVAMORE1500	FIO0-INVAMORE1500	12	150	550	176	282	312	44.8±3%	12.3	PRESENT	10.5

APPLICATION CHART FOR EXIDE INVAMORE BATTERIES

If Summation of Electrical Load	Max. Inverter Rating	System Voltage	Recommended Battery Capacity for different Backup time
If Summation of Electrical Load	Max. Inverter Rating	System Voltage	5 Hrs.	4 Hrs.	3 Hrs.	2 Hrs.	1 Hrs.
160 Watt	250 VA	12V	INVAMORE1300	-	-	-	-
161 - 240 Watt	350 VA	12V	INVAMORE1500	INVAMORE1300	INVAMORE1300	-	-
241 - 440 Watt	650 VA / 700 VA	12V	2P - INVAMORE1500	2P - INVAMORE1300	INVAMORE1800	INVAMORE1500	-
441 - 600 Watt	850 VA / 900 VA	12V	2P - INVAMORE1800	2P - INVAMORE1800	2P - INVAMORE1500	INVAMORE1800	INVAMORE1300
601 - 700 Watt	1050 VA / 1100 VA	12V	3P - INVAMORE1500	2P - INVAMORE1800	2P - INVAMORE1500	2P - INVAMORE1300	INVAMORE1500
701 - 1000 Watt	1450 VA / 1500 VA	12V	-	3P - INVAMORE1800	-	2P - INVAMORE1500	INVAMORE1800
1000 Watt	1450 VA / 1500 VA	24V	2S x 2P - INVAMORE1500	2S x 2P - INVAMORE1500	2S x 2P - INVAMORE1300	2S - INVAMORE1800	-

Note:

* Cut-off voltage of inverter should be 10.5V (Minimum).

* There should be a periodic Bench-Charging of the battery after every three months from the date of installation.

* S = Series connection
P = Parallel connection
e.g. 2S x 2P = A string containing 2 nos. batteries in series and 2 nos. such strings in parallel. Consideration of Electrical Load Details
1 no. Fan = 80 Watt
1 no. Tube light = 40 Watt
