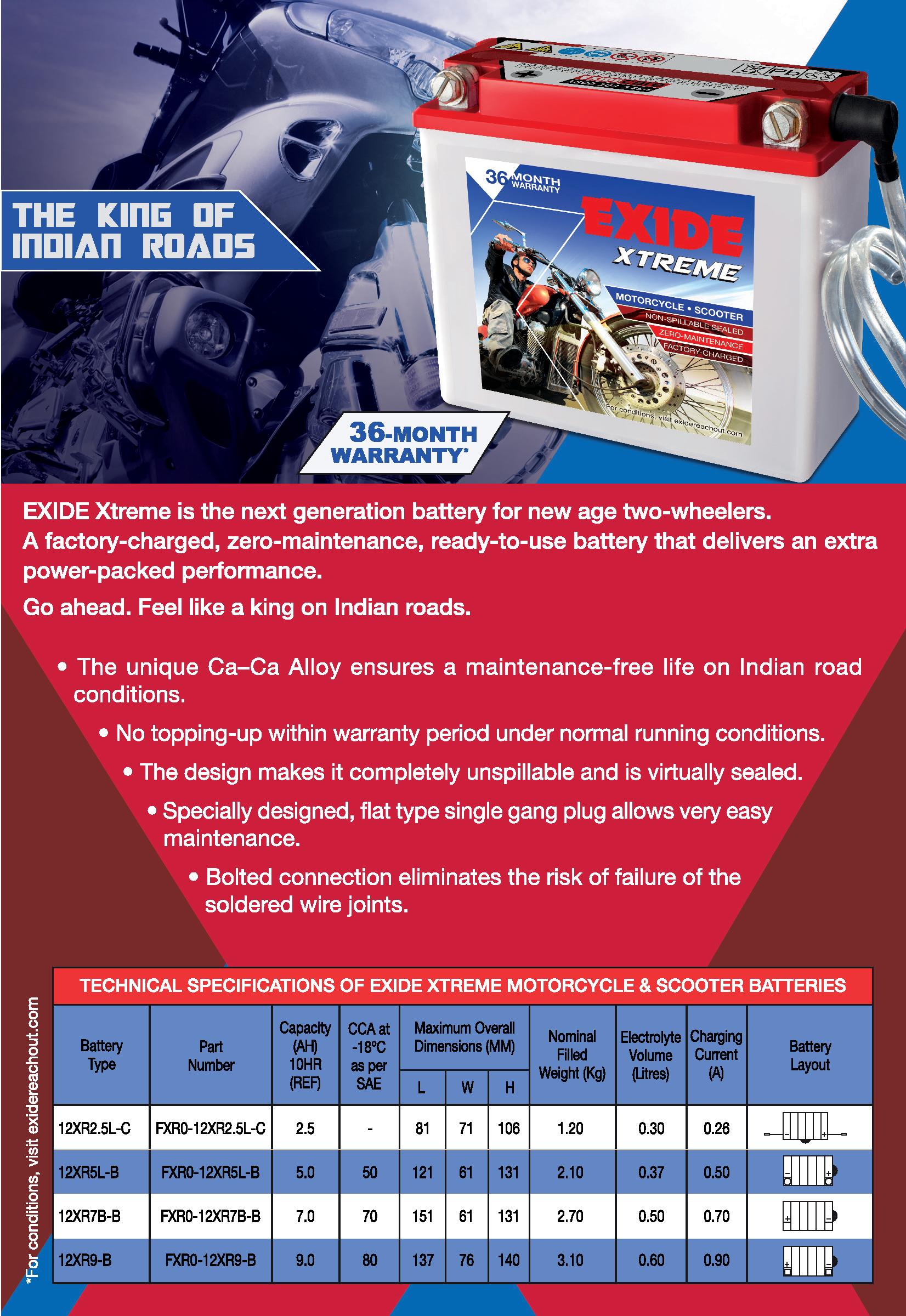

Battery Type | Part Number | Capacity (AH) 10HR (REF) | CCA at -18°C as per SAE | Maximum Overall Dimensions (MM) | Nominal Weight (Kg) | Electrolyte Volume (Litres) | Charging Current (A) | ||
---|---|---|---|---|---|---|---|---|---|
L | W | H | |||||||
12XR2.5L-C | FXR0-12XR2.5L-C | 2.5 | 14 | 81 | 71 | 106 | 1.20 | 0.30 | 0.25 |
12XR5L-B | FXR0-12XR5L-B | 5 | 50 | 121 | 61 | 131 | 2.10 | 0.40 | 0.50 |
12XR7B-B | FXR0-12XR7B-B | 7 | 70 | 151 | 61 | 131 | 2.70 | 0.50 | 0.70 |
12XR9-B | FXR0-12XR9-B | 9 | 80 | 137 | 76 | 139 | 3.10 | 0.60 | 0.80 |
