EXIDE INVASMART

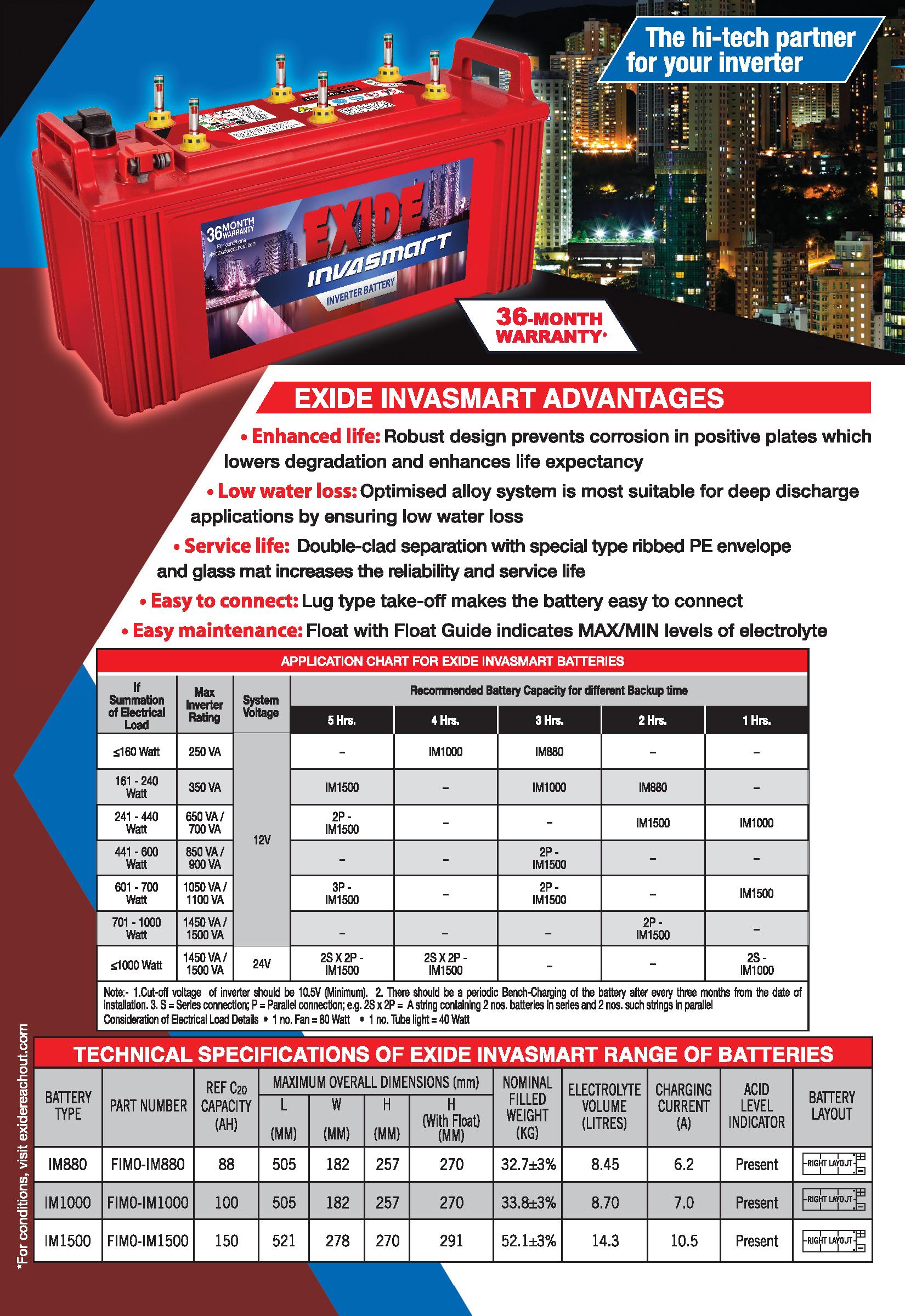

EXIDE INVASMART ADVANTAGES

Exide InvaSmart. Robust design prevents corrosion in positive plates which lowers degradation and enhances life expectancy

Exide InvaSmart.1500

Enhanced life: Robust design prevents corrosion in positive plates which lowers degradation and enhances life expectancy

Low water loss: Optimised alloy system is most suitable for deep discharge applications by ensuring low water loss

Service life: Double-clad separation with special type ribbed PE envelope and glass mat increases the reliability and service life

Easy to connect: Lug type take-off makes the battery easy to connect

Rope handle with partial plastic encasing for easy handling

Easy maintenance: Float with Float Guide indicates MAX/MIN levels of electrolyte

TECHNICAL SPECIFICATIONS OF EXIDE INVASMART RANGE OF BATTERIES

BATTERY TYPE	PART NUMBER	REF C20 CAPACITY (AH)	MAXIMUM OVERALL DIMENSIONS (mm)				NOMINAL FILLED WEIGHT (KG)	ELECTROLYTE VOLUME (LITRES)	CHARGING CURRENT (A)	ACID LEVEL INDICATOR
BATTERY TYPE	PART NUMBER	REF C20 CAPACITY (AH)	L (MM)	W (MM)	H (MM)	H (With Float) (MM)	NOMINAL FILLED WEIGHT (KG)	ELECTROLYTE VOLUME (LITRES)	CHARGING CURRENT (A)	ACID LEVEL INDICATOR
IM880	FIM0-IM880	88	505	182	257	270	32.7±3%	8.45	6.2	Present
IM1000	FIM0-IM1000	100	505	182	257	270	33.8±3%	8.70	7.0	Present
IM1500	FIM0-IM1500	150	521	278	270	291	52.1±3%	14.3	10.5	Present

APPLICATION CHART FOR EXIDE INVASMART BATTERIES

If Summation of Electrical Load	Max Inverter Rating	System Voltage	Recommended Battery Capacity for different Backup time
If Summation of Electrical Load	Max Inverter Rating	System Voltage	5 Hrs.	4 Hrs.	3 Hrs.	2 Hrs.	1 Hrs.
160 Watt	250 VA	12V	-	IM1000	IM880	-	-
161 - 240 Watt	350 VA	12V	IM1500	-	IM1000	IM880	-
241 - 440 Watt	650 VA / 700 VA	12V	2P - IM1500	-	-	IM1500	IM1000
441 - 600 Watt	850 VA / 900 VA	12V	-	-	2P -IM1500	-	-
601 - 700 Watt	1050 VA / 1100 VA	12V	3P - IM1500	-	2P -IM1500	-	IM1500
701 - 1000 Watt	1450 VA / 1500 VA	12V	-	-	-	2P - IM1500	-
1000 Watt	1450 VA / 1500 VA	24V	2S X 2P - IM1500	2S X 2P - IM1500	-	-	2S - IM1000

Note:

1Cut-off voltage of inverter should be 10.5V (Minimum).

2There should be a periodic Bench-Charging of the battery after every three months from the date of installation.

3S = Series connection; P = Parallel connection; e.g. 2S x 2P = A string containing 2 nos. batteries in series and 2 nos. such strings in parallel Consideration of Electrical Load Details 1 no. Fan = 80 Watt 1 no. Tube light = 40 Watt
